Truly Internal Biometric Identification

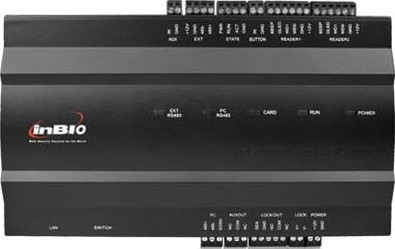

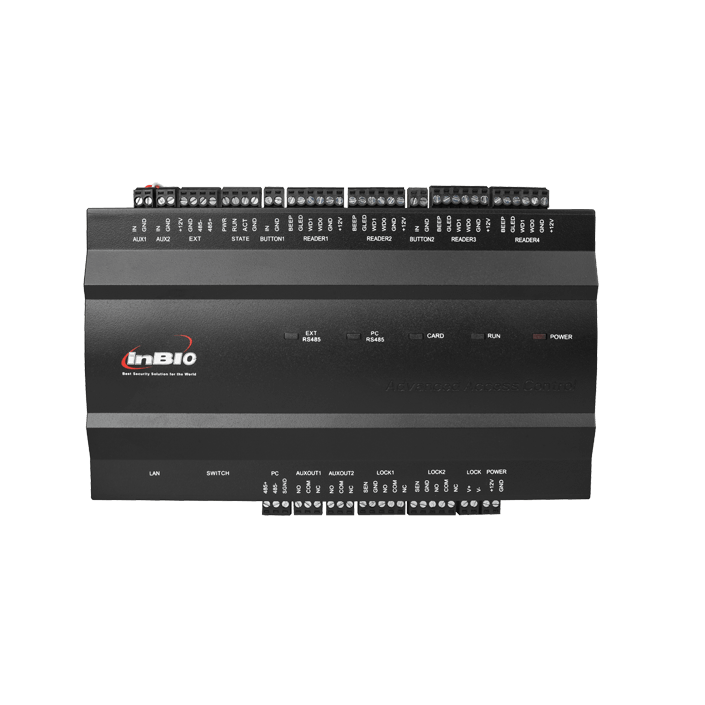

InBio carries out the matching of fingerprints on the panels.
The FR Series of readers transmit fingerprint templates to InBio vis
RS485 for fast and accurate matching with templates stored in the
database. Wiegand inputs are also provided for traditional RFID readers.
More than Door Control
Access additional control and interfaces. After programming,
auxiliary relays can function as lights, alarms and intrusion
detection panels. Extra locking devices or gate controllers can be
accessed.
Communicaiton
InBio controllers can be installed easily on your network and
support both TCP/IP and RS-485 communication. Auto-discovery tool
allows setting and modification of network parameters directly and
easily.
Capacity
Support up to 3000 fingerprint templates, 30,000 badge users
and store up to 10,000
events and transactions. Data is preserved if power is lost. controller continues to operate if network connection is interrupted
Advanced Access Control Built-In
Anti-Passback, First-Card Opening, Multi-Card Opening, Duress
Password entry and auxiliary input/output linkages are built into
controller firmware
