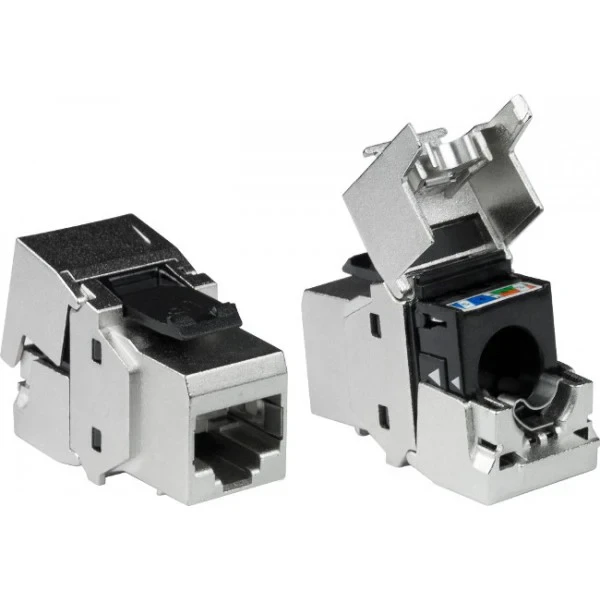

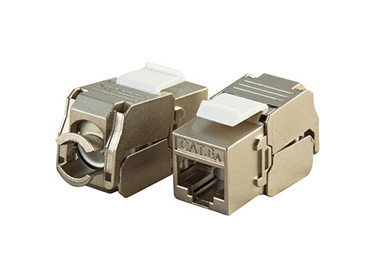

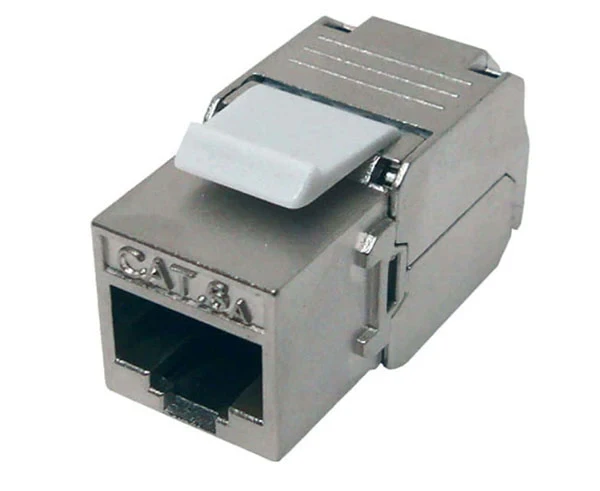

Avalon Cat. 6 900 Jacks are designed and
manufactured to meet the current and future requirements of high bandwidth and
form an essential element of the Structured Cabling System. The Jacks snap
easily in and out of wall outlets, surface mount boxes, and patch panels. These
comply with TIA/EIA-568-C.2 specifications.
Features
RJ45 8P 8C 90˚C 50u Punch Down Jack
Terminating 4 pairs of 22-26 AWG Cable
Universal labels color-coded for T568A and
T568B wiring schemes
Fitting high-density keystone panel
UL, ETL, and RoHS-certified
Two types of tools can be used for
termination: the 110 and Krone Type
IDC contacts that allow re-termination
without damaging the unit
Specifications
Housing: High-impact flame-retardant
polycarbonate, UL94V-0
Spring Wire: Phosphor Bronze With
Gold-plated 3u-50u
IDC Contact: Phosphor Bronze
Insertion life: ≥1000 mating cycles
Operating Temperature Range: -600 to 800
IDC Accept: 22-26 AWG
Wire Scheme: T568A/B
Insulation Resistance: 500Ω
Current Rating: 1.5Amps
DC Resistance: 0.1-ohm MAX
Voltage: 150 VAC MAX
Plug Retention Force: 89N
Applications
Horizontal Distribution and Backbone Area
4/16 Mbps Token Ring (IEEE 802.5)
10/100/1000 Base (IEEE 802.3)
155Mbps ATM
100 Mbps TP-PMD
Analogue Voice, ISDN, ADSL
